ARCH 231 Anatomy of Buildings
1/2” = 1’-0”

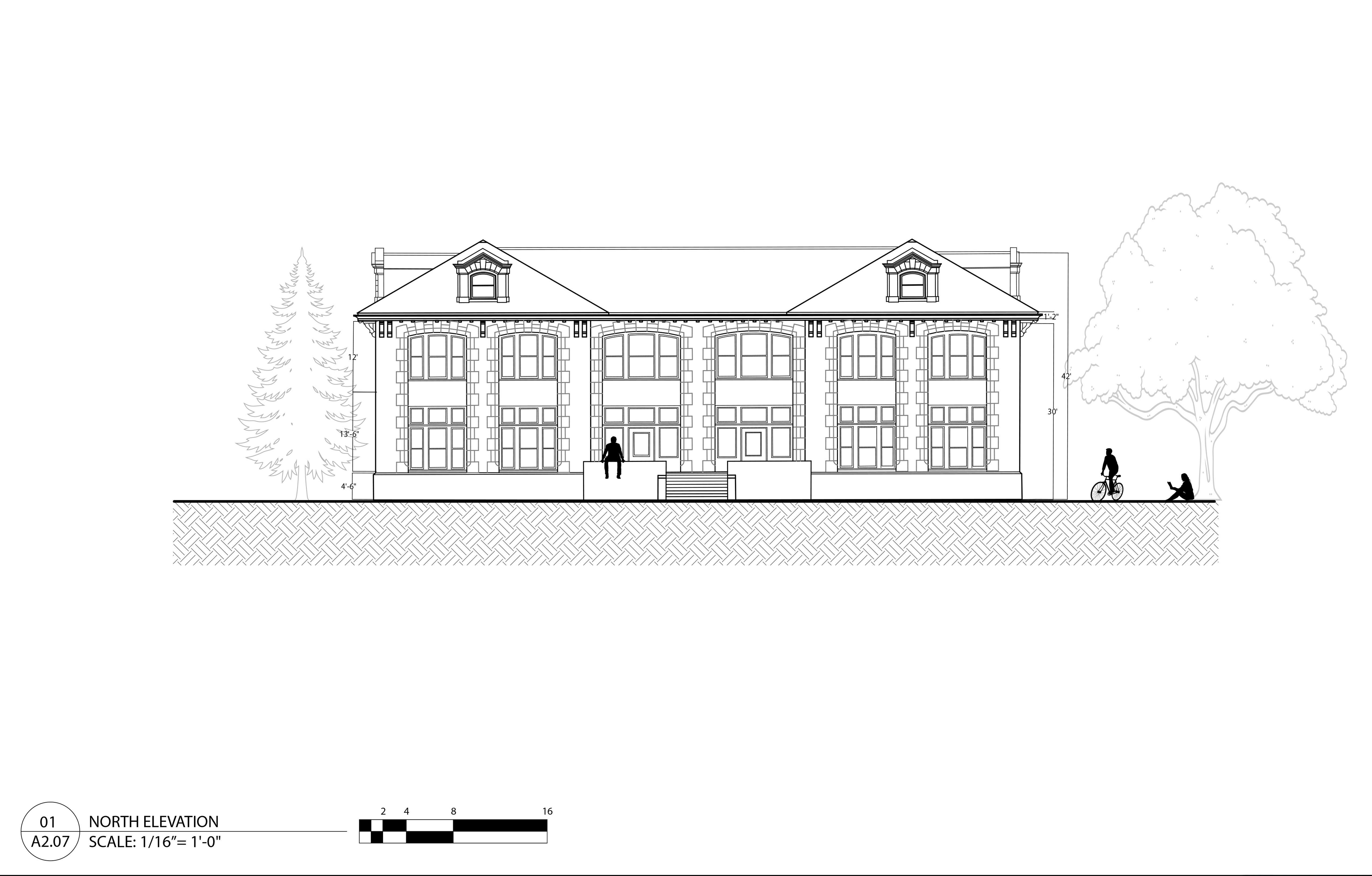

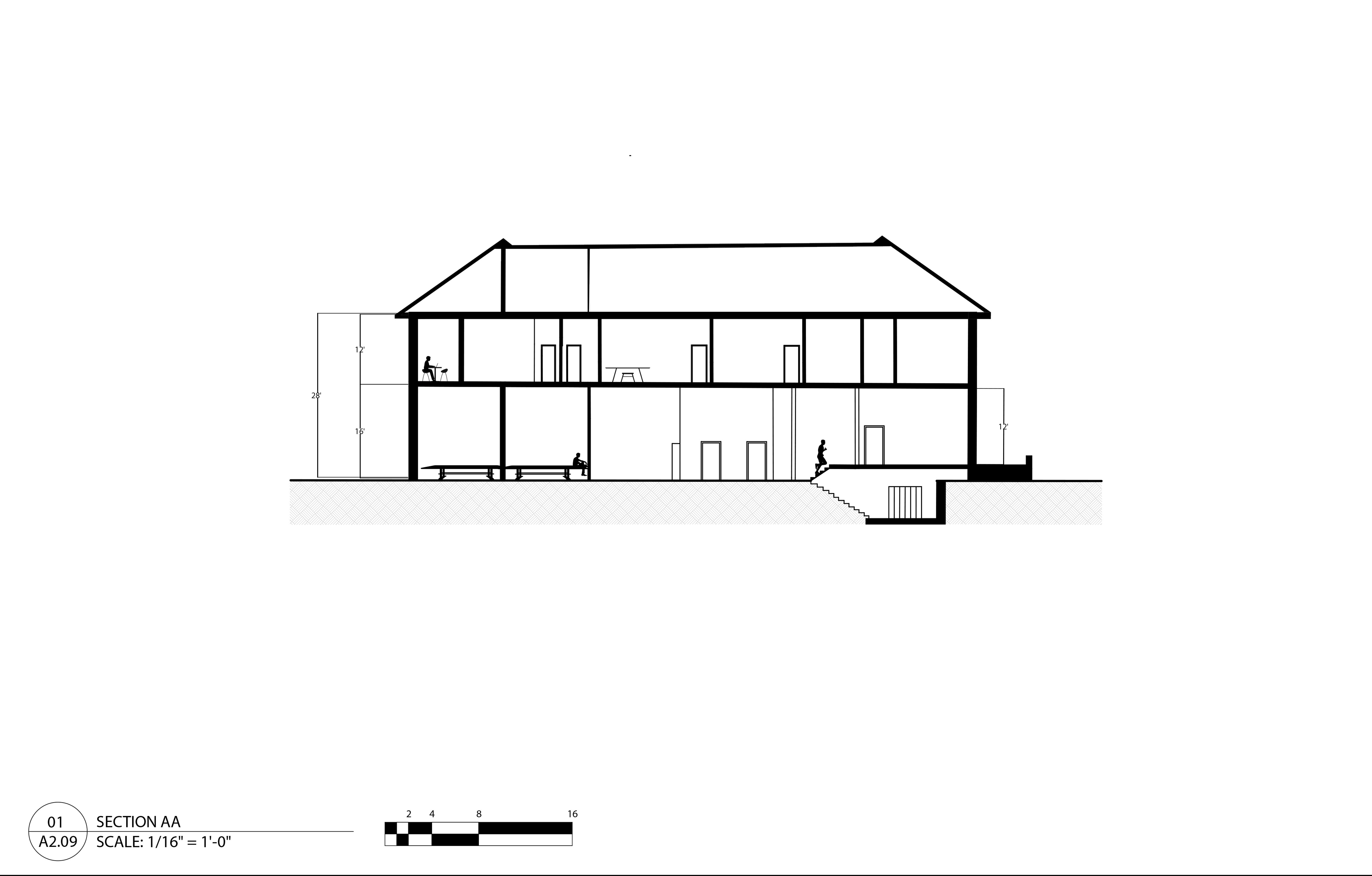

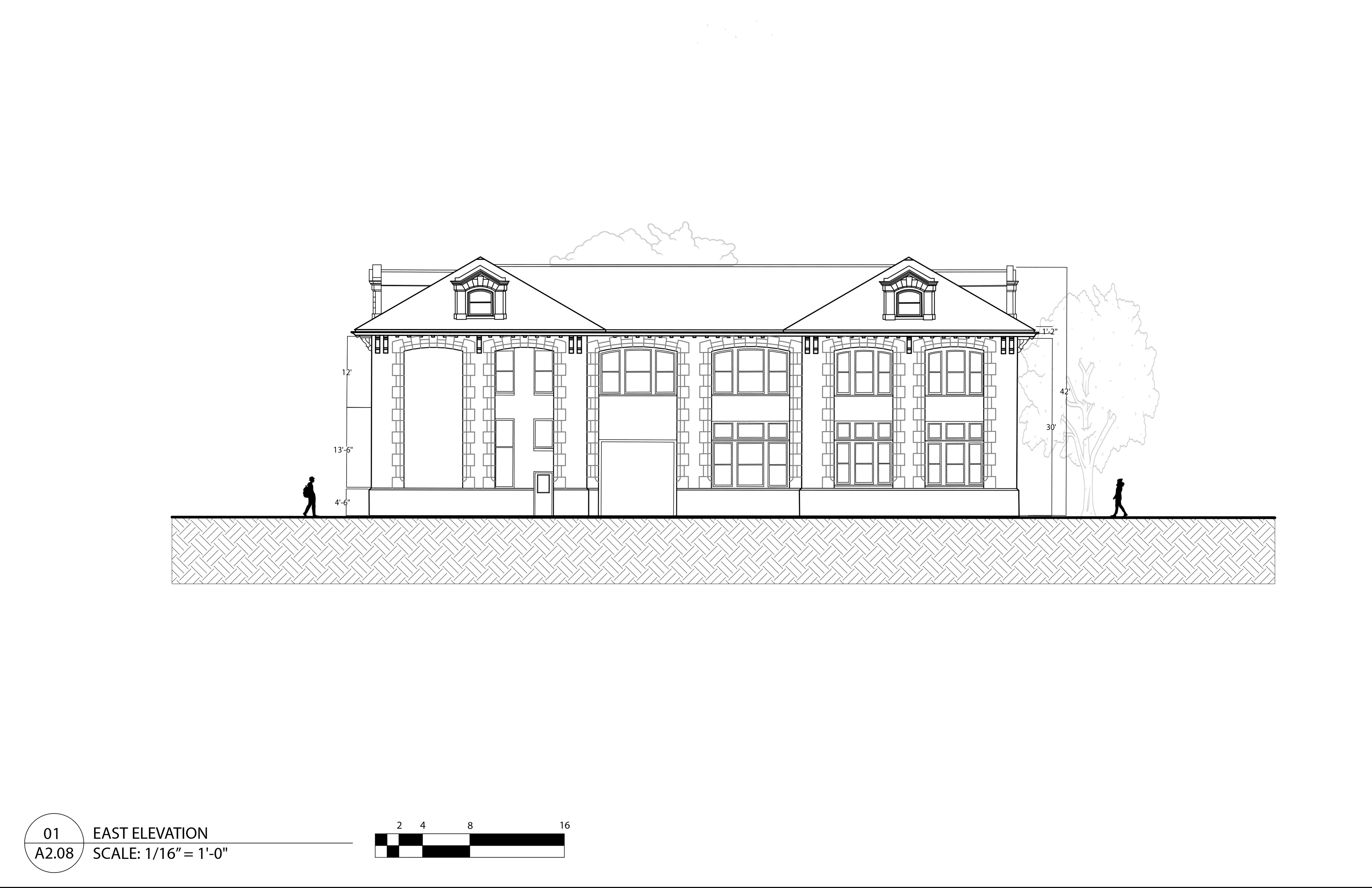

Plans/Elevations/Sections: UIUC Architecture Annex

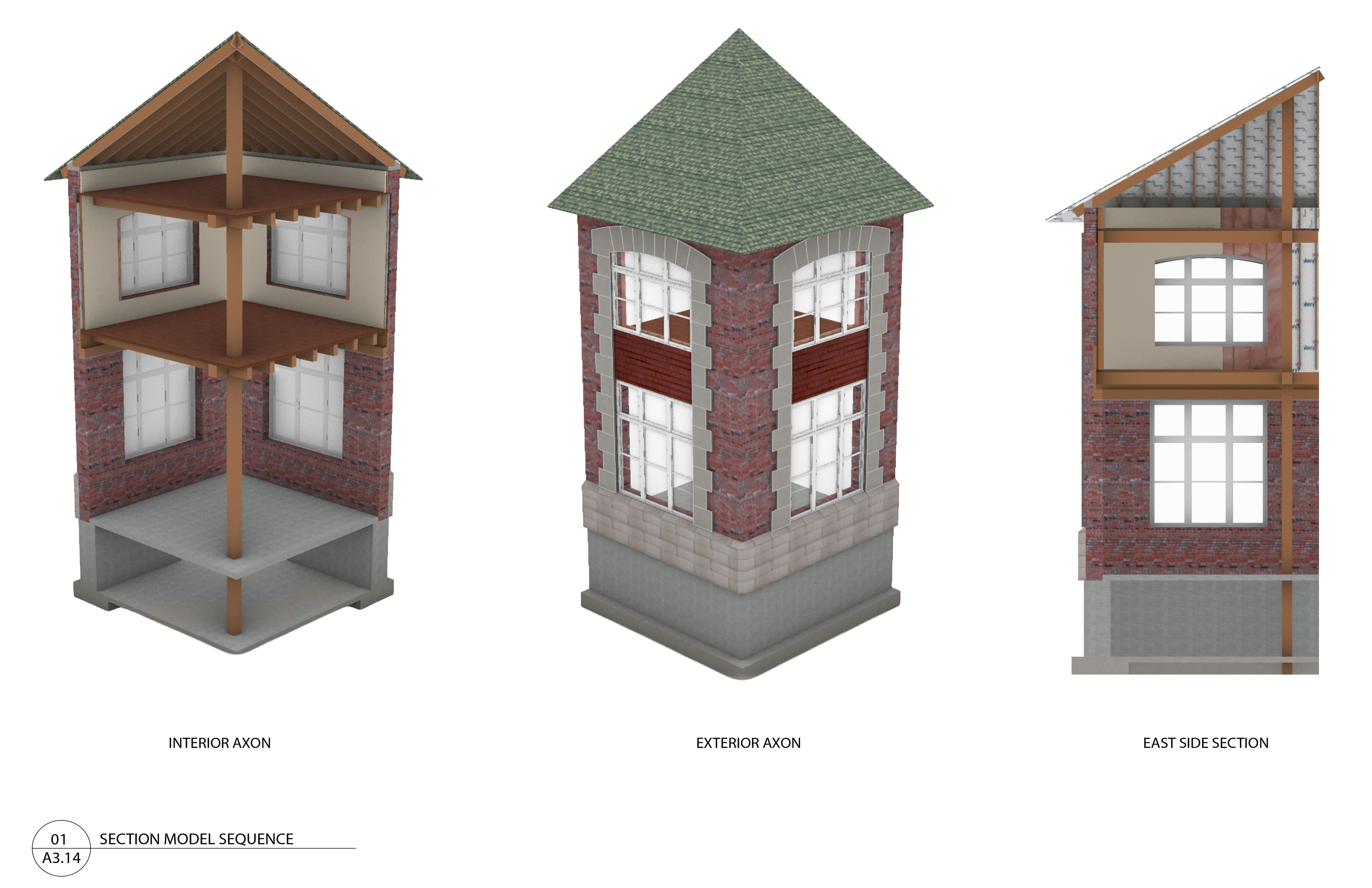

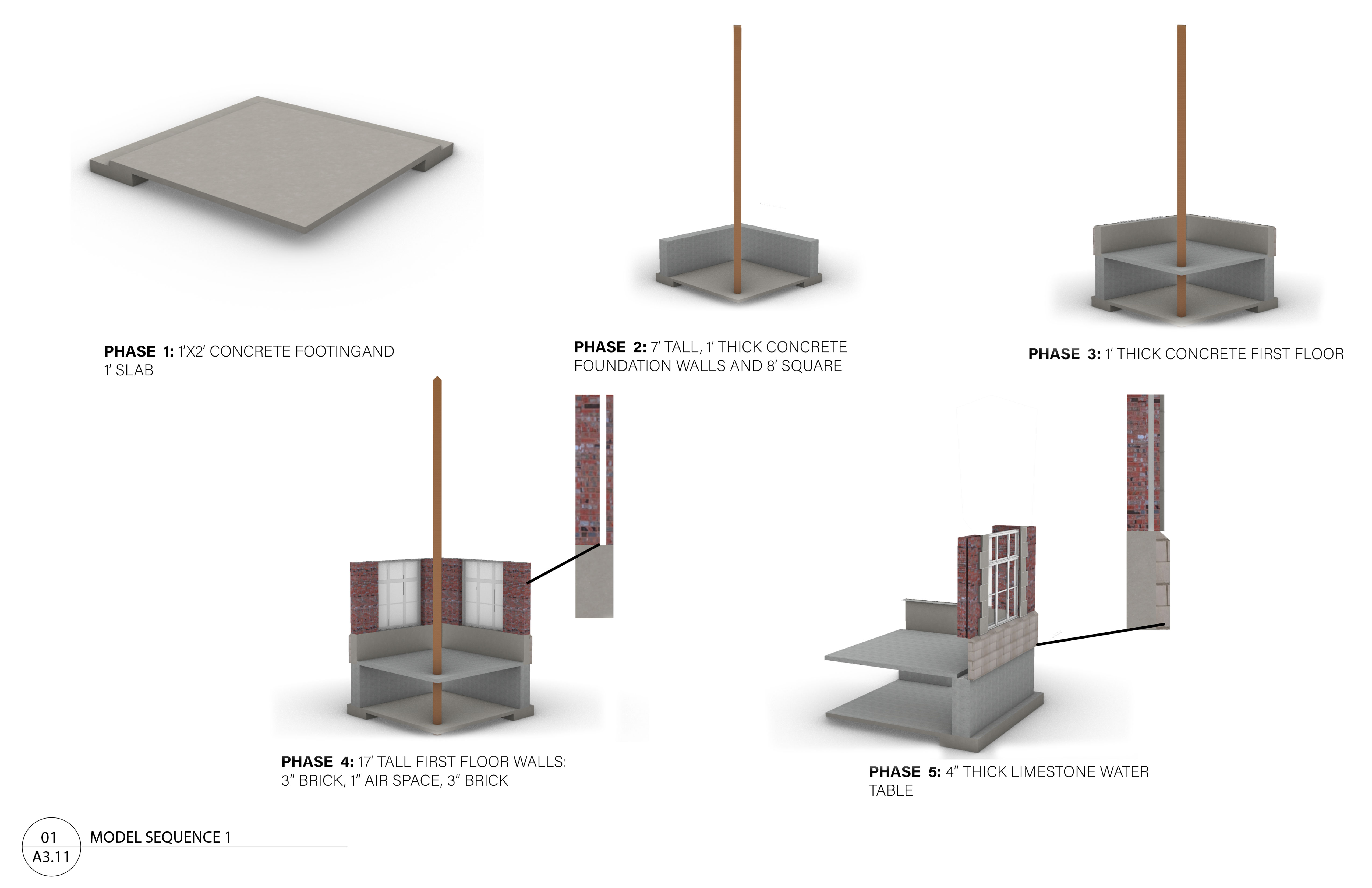

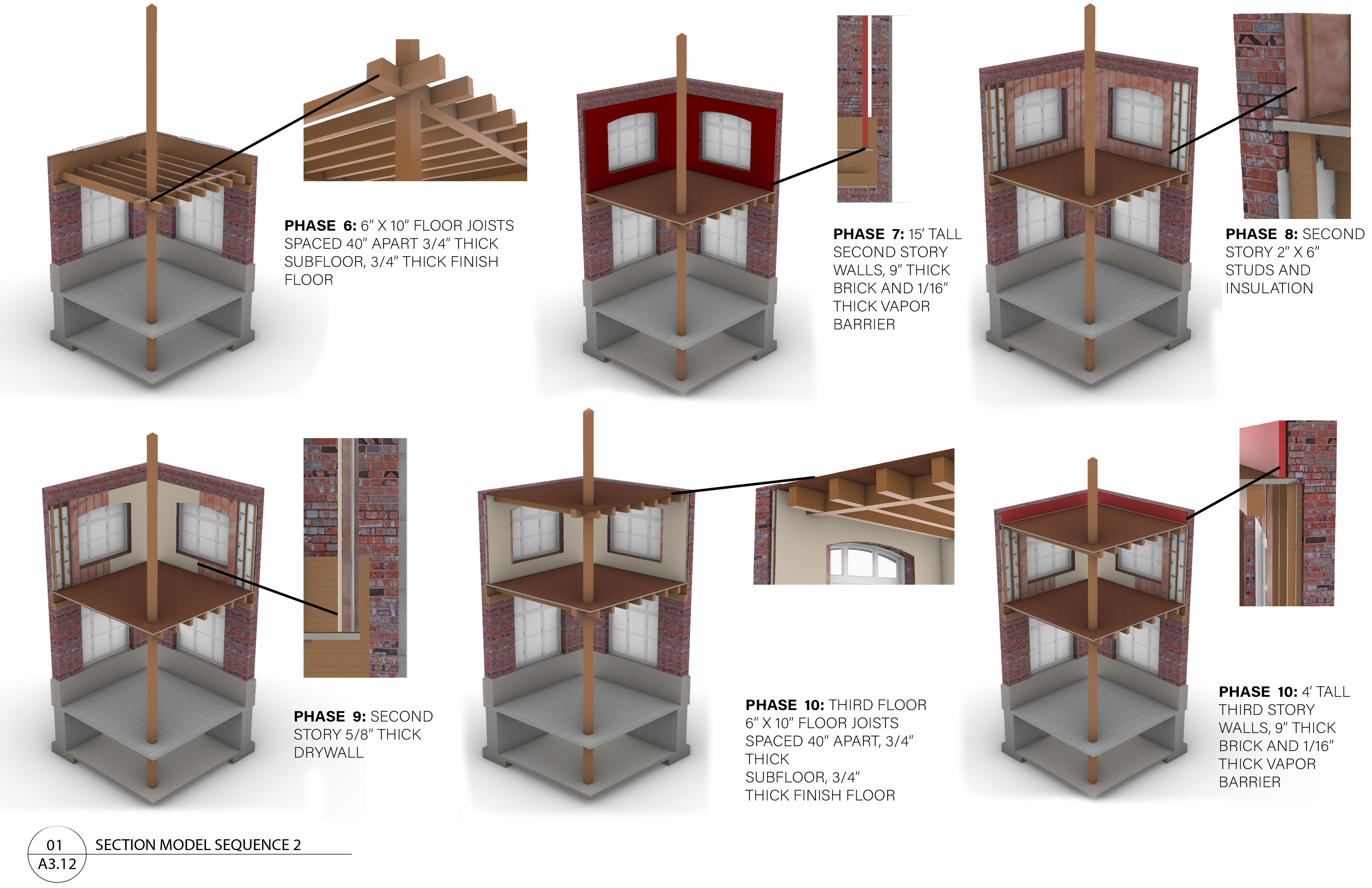

Physical and 3D model of a 20ft x 20ft NE corner of the UIUC Architecture Annex Building that demonstrates a step by step construction assembly sequence
Drafted in AutoCAD
Modeled in Rhino 8
Layout in Illustrator
